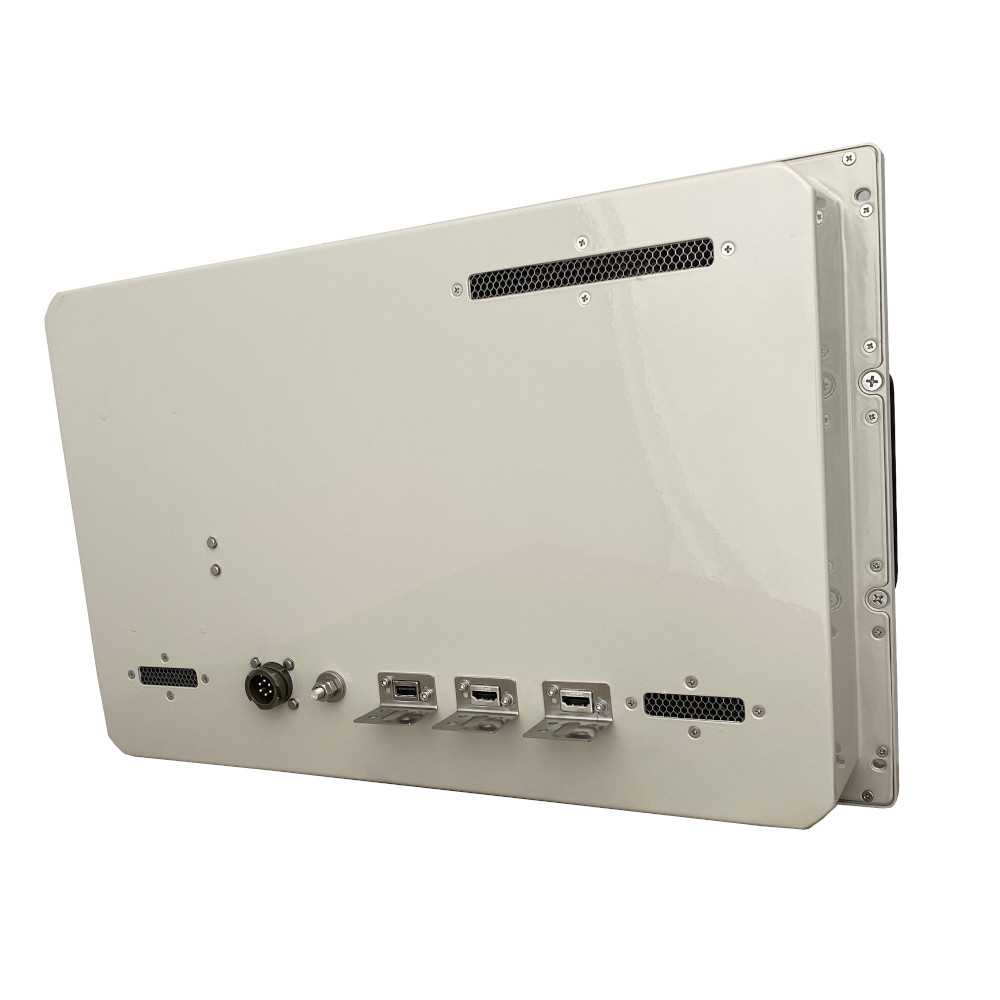

18.5inch Full-HD Airborne Display
DISP-185-1910
DISP-185-1910 is airborne grade rugged display that supports 10 points PCAP touch, FHD resolution, anti-reflective coating, wide viewing angle and 720nits high brightness. Certified to MIL-STD-810G, 461G, DO-160 and MIL-STD-704F.
- Test reports available
- No export license
| Specifications | Values |
|---|---|
| Panel | 18.47" (Diagonal) IPS, Optically Bonded with EMI and Anti Reflective Cover Glass |
| Backlight | LED Backlight |
| Resolution | 1920x1080 16:9 Aspect Ratio |
| Touch | Option 1: None Option 2: 5W Armored Resistive Single Point Touch Option 3: PCAP 10points Multi-Touch |
| Brightness | 720 Nits after cover glass and AR coating loss |
| Color Depth | 16.7M |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 89/89/89/89 |
| Video Input | 1xDVI, 1xHDMI |
| Dimming | 0 ~ 100% |
| Response Time | 10ms Typical |
| Touch Interface | USB 2.0 |
| Cooling | Fanless |
| Power Input | Option 1: 90 ~ 264V AC 47 ~ 63Hz Option 2: 9 ~ 36V DC, MIL-STD-1275E Option 3: 9 ~ 36V DC, MIL-STD-704F, DO-160(Section 16-18) Option 4: TEMPEST certified AC/DC Adapter |
| Power Consumption | 40W max |
| LED Lifetime | 70.000 hrs |
| Mounting Style | Console, VESA |
| Dimensions (WxHxD) | 480x310x75 mm |
| Weight | ~6,6 kg |
