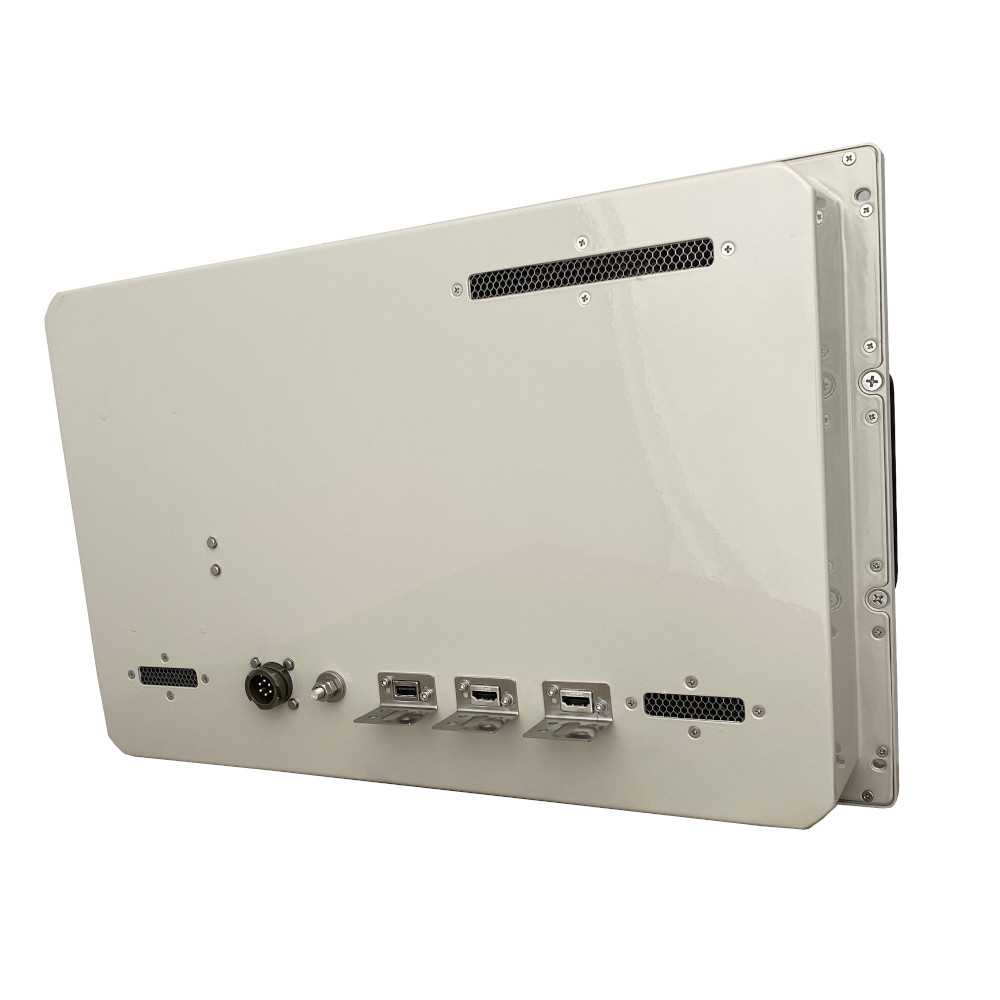

18.5inch Full-HD Airborne Display


DISP-185-1910 is airborne grade rugged display that supports 10 points PCAP touch, FHD resolution, anti-reflective coating, wide viewing angle and 720nits high brightness. Certified to MIL-STD-810G, 461G, DO-160 and MIL-STD-704F.

  • Test reports available
  • No export license
Panel18.47" (Diagonal) IPS, Optically Bonded with EMI and Anti Reflective Cover Glass
BacklightLED Backlight
Resolution1920x1080 16:9 Aspect Ratio
TouchOption 1: None
Option 2: 5W Armored Resistive Single Point Touch
Option 3: PCAP 10points Multi-Touch
Brightness720 Nits after cover glass and AR coating loss
Color Depth16.7M
Contrast Ratio1000:1
Viewing Angle89/89/89/89
Video Input1xDVI, 1xHDMI
Dimming0 ~ 100%
Response Time10ms Typical
Touch InterfaceUSB 2.0
Power InputOption 1: 90 ~ 264V AC 47 ~ 63Hz
Option 2: 9 ~ 36V DC, MIL-STD-1275E
Option 3: 9 ~ 36V DC, MIL-STD-704F, DO-160(Section 16-18)
Option 4: TEMPEST certified AC/DC Adapter
Power Consumption40W max
LED Lifetime70.000 hrs
Mounting StyleConsole, VESA
Dimensions (WxHxD)480x310x75 mm
Weight~6,6 kg
