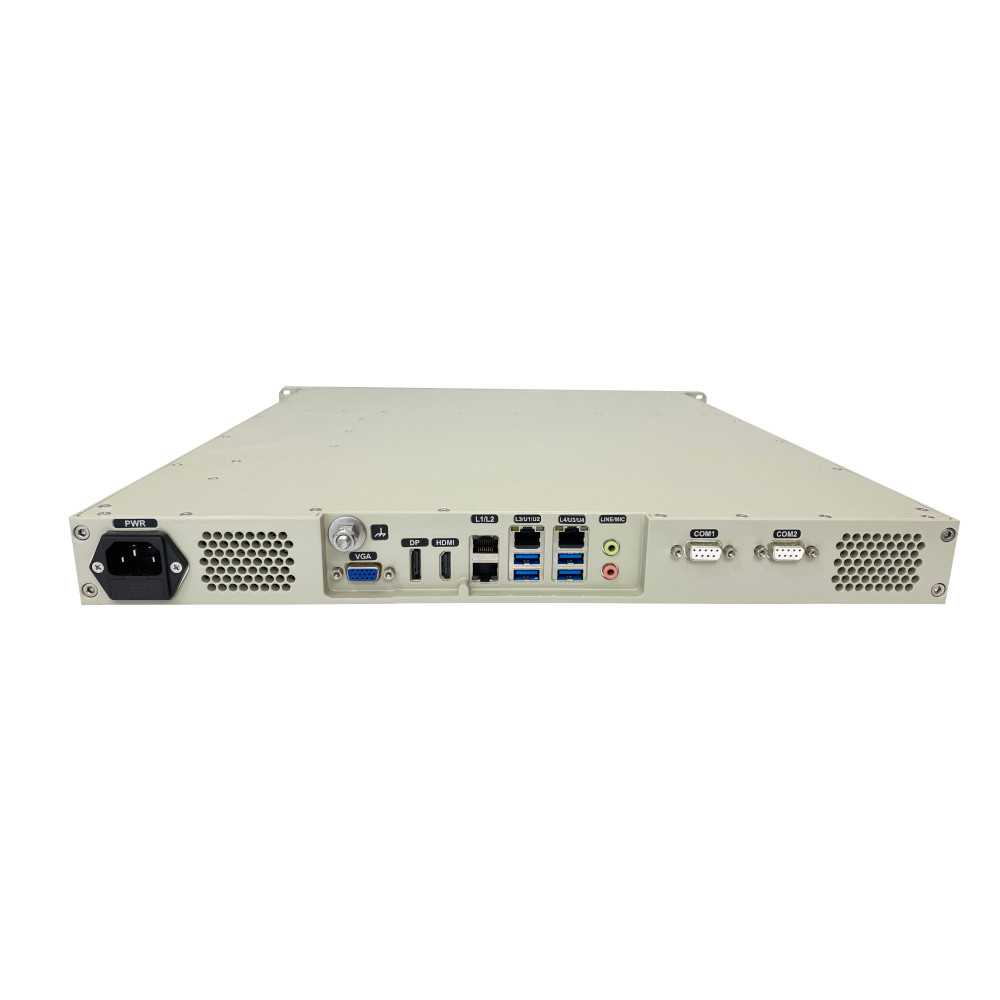

1U Military Rugged Server with Wide Temperature Support
SRV500-943-1U
The SRV500 is a 19" rackmount rugged server that has 50cm depth and provides -15C ~ 50C operational temperature support, three video outputs, quad LAN ports, DVD-RW, front accessiable hot-plug SSD. Delivered with 9~36V DC or 90~264V AC power supply. AMDTEC temperature management system lets the unit's fans rotate at the speed of required levels based on inside/outside temperature to reduce acoustic noise.
- Test reports available
- No export license
| Specifications | Values |
|---|---|
| CPU | Option 1: Intel Xeon E-2176G, 6 Core, 12 MB SmartCache, 3.70 GHz(Max 4.70 GHz) Option 2: Intel Core i7-9700E, 8 Core, 12 MB Cache, 2.60 GHz(Max 4.40 GHz) Option 3: Intel Xeon E-2278GE, 8 Core, 16 MB Cache, 3.30 GHz(Max 4.70 GHz) Option 4: Intel Xeon E-2278G, 8 Core, 16 MB Cache, 3.40 GHz(Max 5.00 GHz) |
| Chipset | C246 |
| Graphics | Intel HD Graphics 630 |
| Memory | Max 128 GB DDR4 2666 Mhz ECC or Non-ECC RAM |
| Network | 4x Gigabit LAN |
| Storage | 1x Front Accessible Hot-pluggable SSD with RAID 0,1,5,10 Up to 5x Internal SSD with RAID 0,1,5,10 Optional: Zeroize Function |
| Video Outputs | 1x Display Port, 1x HDMI, 1x VGA |
| Serial | 4x RS232/422/485 |
| USB | 2x USB 3.0 front and 4x USB 2.0 rear |
| GPIO | 16 Non-Isolated Digital Input Output |
| Audio | 1x Mic & 1x LineOut |
| DVD-RW | 1x DVD-R/RW Dual Layer |
| Power Input | Option 1: 90 ~ 264V AC 47~63Hz Option 2: 10 ~ 33V DC, MIL-STD-1275E Option 3: 10 ~ 33V DC, MIL-STD-704F, DO-160(Section 16-18) Option 4: TEMPEST certified AC/DC Adapter |
| Power Consumption | Max 220W |
| Remote ON/OFF | Through CAN BUS or RS232 |
| Operating System | Windows 2016 Server, Windows 2019 Server, Windows 10, Linux |
| Cooling Method | Fans |
| Misc. | Optional: 2x Dual Redundant MIL-STD-1553, ARINC 729(4x Ch Tx, 8x Ch Rx) |
| Weight | 6,8 kg (Based on configuration) |
| Dimensions (WxHxD) | 480.6 x 43.50 x 500 mm |
| Chassis Construction | Aluminum Alloy |
