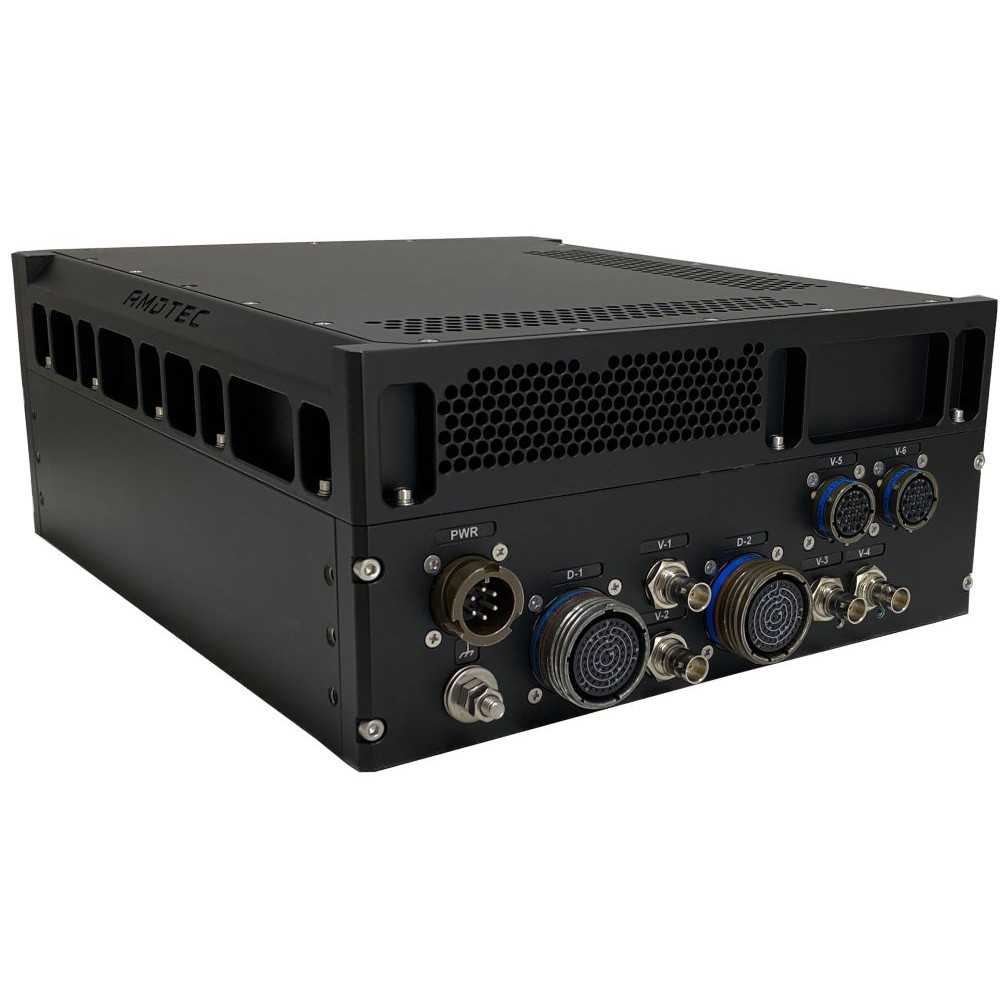

Military Rugged Computer with NVIDIA GPU
CMP-1700-1084
The CMP-1700 Series represent military grade computer with NVIDIA's high-end RTX A2000 GPU incorporating Intel's 10th generation Core i9-10900TE CPU with 64GB DDR4 RAM. Featuring dual 3G-SDI input/outputs, dual HDMI/DVI video outputs, 12 channels run-time programmable isolated serial interface, wide-range MIL-STD-1275E compliant power input, quad gigabit LAN. One channel dual redundant MIL-STD-1553 are provided optional.
| Specifications | Values |
|---|---|
| CPU | Option 1: Intel Xeon W-1290TE 10 Core, 20 Threads, 20 MB Cache, 1.80 GHz Option 2: Intel Core i9-10900TE 10 Core, 20 Threads, 20 MB Cache, 1.80 GHz |
| Chipset | W480E |
| Graphics | Option 1: NVIDIA RTX A2000, 8GB GDDR6, 2560 Cuda Cores, 20 RT, 80 Tensor Option 2: NVIDIA RTX 3000 6GB GDDR6, 1920 Cuda Cores, 30 RT, 240 Tensor Option 3: NVIDIA RTX 5000 16GB GDDR6, 3072 Cuda Cores, 48 RT, 384 Tensor |
| Memory | 64GB DDR4 Non-ECC/ECC RAM |
| Network (With DPDK Support) | Option 1: 2x 1Gbps LAN Option 2: 4x 1Gbps LAN |
| Storage | Front Accessible 2x SATA3 SSD with RAID 0,1. Optional: Zeroize Function |
| Video Outputs | Option 1: 1x DVI/HDMI (1920x1080) Option 2: 2x DVI/HDMI (1920x1080) |
| Video Input | Option 1: None Option 2: 2x 3G-SDI 1920 x 1080 60fps, H.264 H/W encoding Option 3: 4x 3G-SDI 1920 x 1080 60fps, H.264 H/W encoding |
| Serial | Up to 16x Isolated RS232/422/485 (Max Baud Rate 921.600) |
| USB | 4x USB 2.0, 1x USB 3.0 |
| GPIO | Up to 8x Isolated Discrete Input & 8x Isolated Discrete Output |
| MIL-STD-1553 (Optional) | Option 1: None Option 2: 1x Dual-Redundant Channel (BC/RT/MON) Option 3: 2x Dual-Redundant Channels (BC/RT/MON) |
| CANBUS (Optional) | Option 1: None Option 2: 2x Channel Isolated CANbus 2.0B/2.0A/J1939 Option 3: 4x Channel Isolated CANbus 2.0B/2.0A/J1939 |
| Power Input | Option 1: 10 ~ 40V DC Continuous, MIL-STD-1275E Option 2: 10 ~ 40V DC Continuous, MIL-STD-704F, DO-160(Section 16-18) Option 3: 90 ~ 264V AC 47~63Hz |
| Operating System | Windows, Linux |
| Cooling | Fanless |
| Weight | ~10.8 kg (Based on configuration) |
| Dimensions(WxHxD) | 269 x 356 x 124 mm (Exld. Handles) |
| Chassis Construction | Fully Sealed Aluminum Alloy Chassis |
